Quick Start Guide for the G-1090 Air Traffic Receiver

Steps to Begin Using the G-1090 Air Traffic Receiver:

1. Install the Receiver:

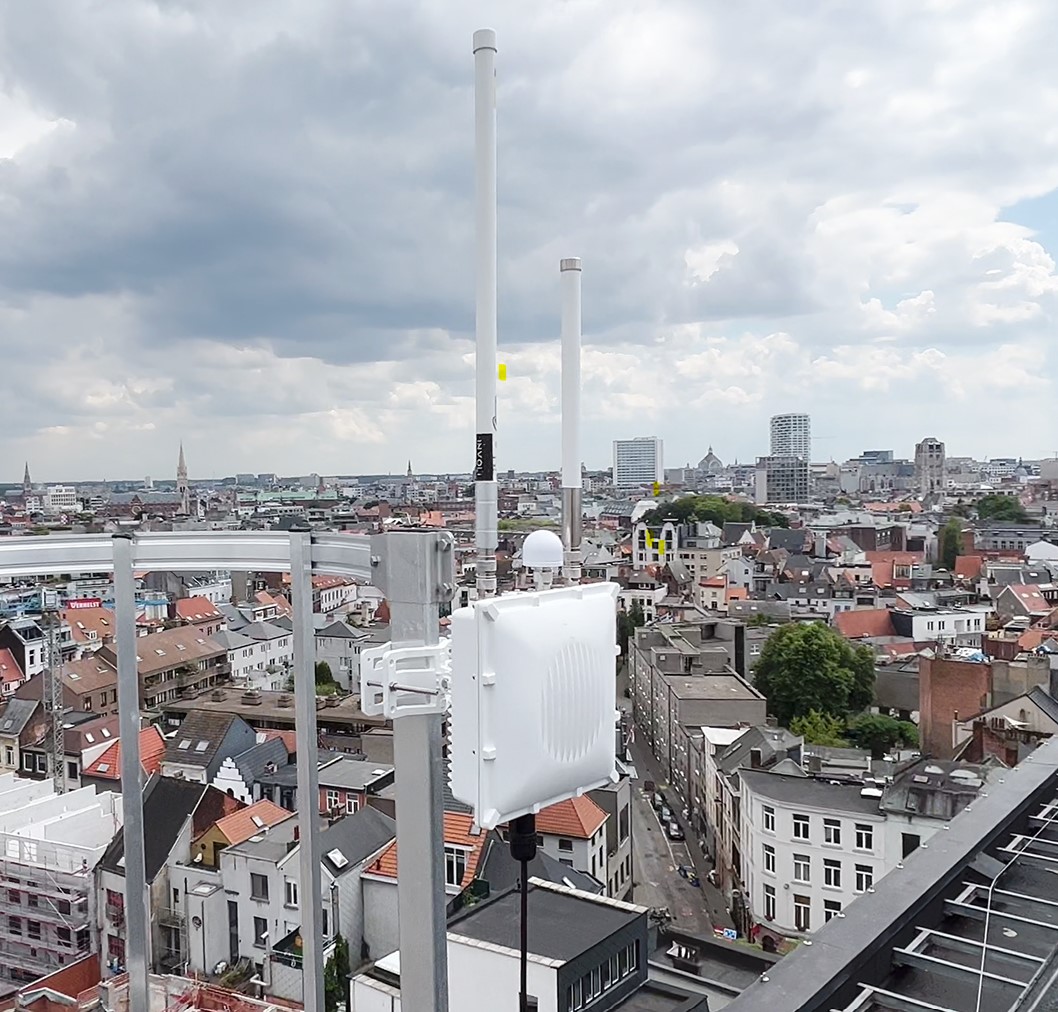

   Mount the G-1090 air traffic receiver on a pole in a location with a clear view of the sky (e.g., a rooftop), and securely connect the antennas.
2. Connect to Power and Internet:
   Use an Ethernet cable to connect the G-1090 to a PoE (Power over Ethernet) source with internet access (e.g., an LTE PoE router) configured with DHCP.
3. Check the Status LED:
   The receiver features a status LED located at the bottom, near the Ethernet port. During normal operation, the LED will display a constant green light with short cyan flashes.
4. Visualize Air Traffic:
   Log in to INVOLI.live to view the detected air traffic on a map, or connect to an INVOLI stream via the INVOLI API to directly integrate live air traffic data into your software.
