G-1090 Receiver: Components, Features, and Dimensions

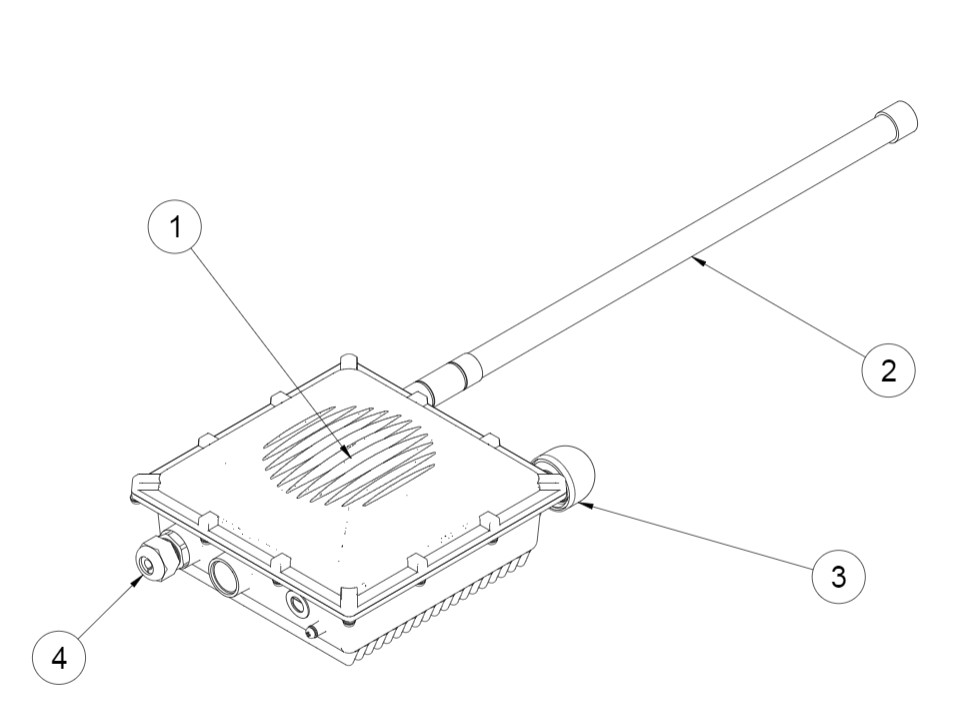

The image below illustrates the G-1090 receiver, which is currently equipped with a single antenna. Depending on the specific options selected (Flarm, UAT, Remote ID), the installation of a secondary antenna may be necessary to ensure comprehensive functionality.
Core components:
- Receiver IP66 box
- 1090 MHz antenna
- GNSS antenna
- Waterproof RJ45 Ethernet socket (communication and PoE input)
Key functionalities and properties:
- Reception of 1090 MHz aviation frequency communications (ADS-B, Mode S, and Mode A/C)
- Accurate measurement of local atmospheric pressure for precise pressure altitude compensation
- Data and power transmission facilitated through Power Over Ethernet (PoE)
- Robust enclosure engineered for external mounting (IP66 rated)
- Comprehensive internal surge protection mechanisms
- Maximum power consumption rated at 8 Watts
- Maximum data throughput: 1 GB per day
Available Options and Accessories:
- FLARM signal detection on the 868 MHz frequency (requires an additional FLARM antenna)
- UAT signal detection on the 978 MHz frequency (an extra UAT antenna is necessary)
- Reception of Broadcast Remote ID signals from UAVs (an additional 2.4GHz Wifi antenna is required)
- Outdoor Ethernet cable pre-installed with a Waterproof RJ45 Ethernet connector
- 4G router with advanced Power over Ethernet capabilities
- Global SIM card available upon request for enhanced connectivity
- Power adapter converting from 110V/220V to PoE
- Comprehensive lightning protection system
Dimensions:
- Size without connectors and antennas (in mm): 220 x 220 x 110
- Size without connectors and antennas (in inches): 8.6" x 8.6" x 4.3"
- Size with connectors (in mm): 220 x 270 x 110, excluding antennas
- Size with connectors (in inches): 8.6" x 10.63" x 4.3" excluding antennas
- Weight: varies by version, but with all options, maximum weight is 3.9kg (8.6 lb)
